Extrusion
Extrusion Barrels

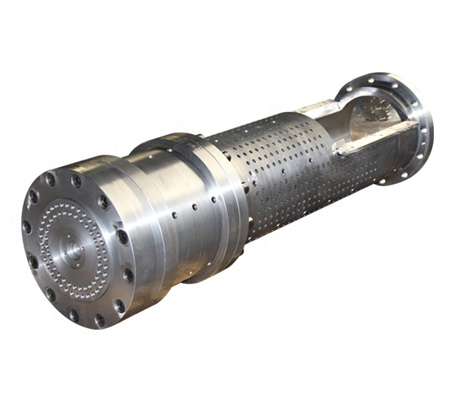

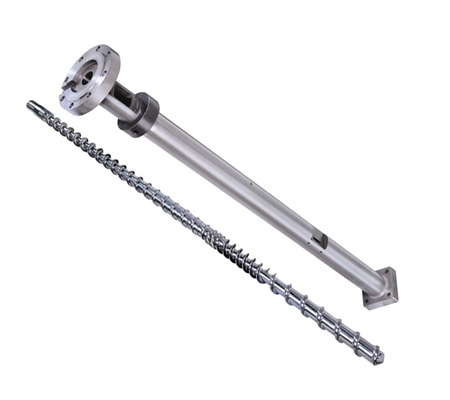

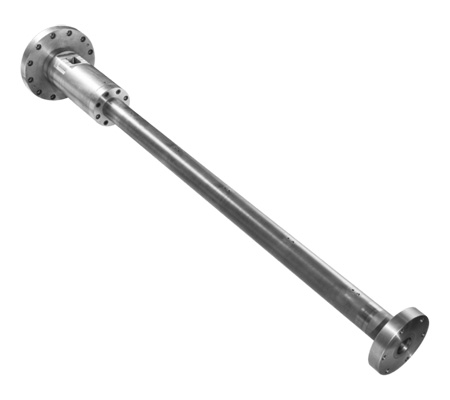

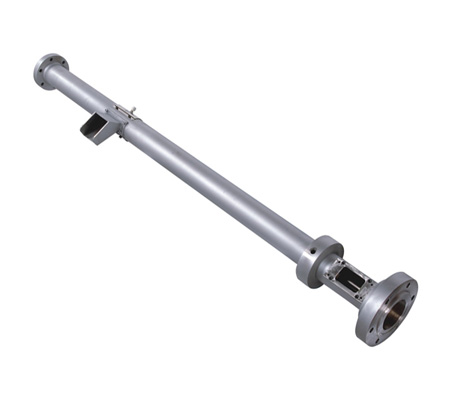

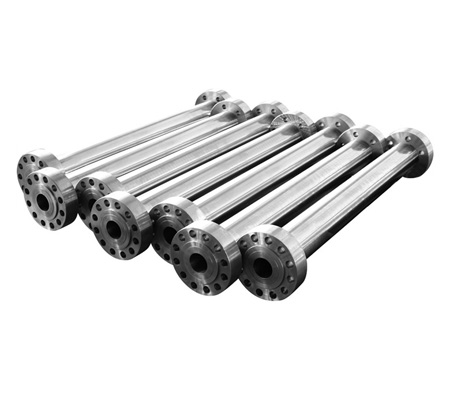

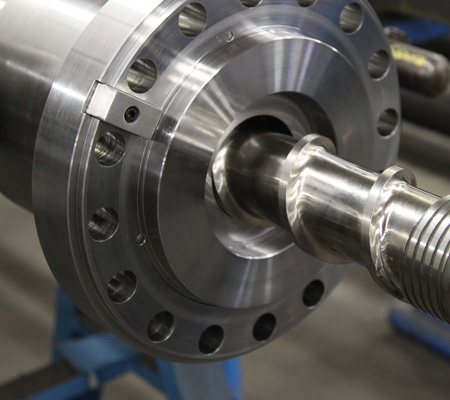

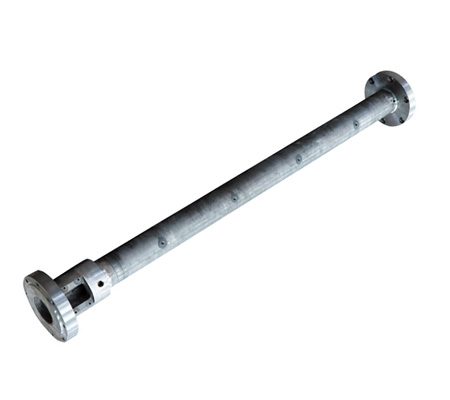

Proper extrusion barrel design and care ensures a successful project. Barrel strength, heat transfer, quality, and wear-life greatly impact the feasibility of every project. We offer clamp-type, bolt-on, or threaded discharge flanges. Yashi Screw can accommodate a complete selection of replacement barrel sizes with a wide range of bimetallic inlays to ensure the proper barrel for your specific extrusion application, as well as emergency barrel repair. Barrels are centrifugally cast with bi-metallic liners of Nickel-Boron or Tungston-Carbide. Rupture disc and pressure transducer holes are pre-drilled at the factory and thermocouple holes can either be pre-drilled or drilled on site.
Base Materials:
Alloy Steel: 4140 steel(AISI 4140), Nitralloy 135M, GB 38CrMoAlA, JIS SACM645, BS EN41B, 34CrAlNi7, DIN 1.8509, DIN 1.8550, 41CrAlMo7, or equivalents.
Stainless Steel: 304, 316, 416, 17-4PH
Tool Steel: D-2, H-13, DC53, CPM 9V, CPM 10V
High Nickel Alloys: Hastelloy C-276, Inconel 625, Inconel 718
Flight Hardfacing Materials:
Nickel base: Colmonoy #56, Colmonoy #57, Colmonoy #83, Colmonoy #88
Cobalt base: Stellite #6, Stellite #12
Surface Hardenings:
Gas nitriding and Ion nitriding, Chrome plating, Carbide encapsulating, PVD coating, etc.
