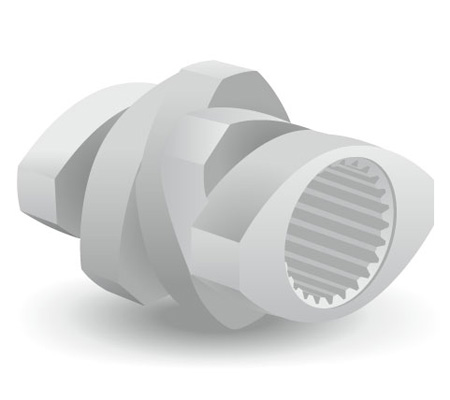

Screw elements (also called screw segments), are typically and widely used on all twin screw extruders in their modular design. Screw elements are mounted onto a common shaft, the screw geometry (or the screw profile) can easily be adjusted to suit specific process application. Different screw segments are designed to give various processing functions: conveying, compression, reverse-conveying, mixing and kneading.

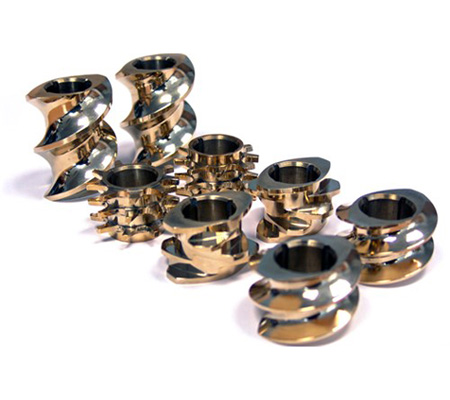

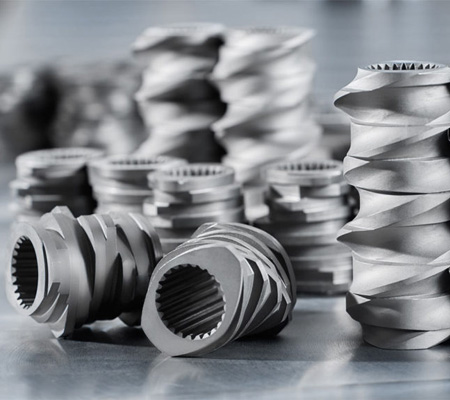

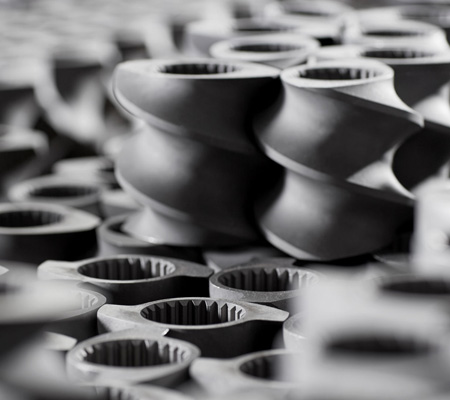

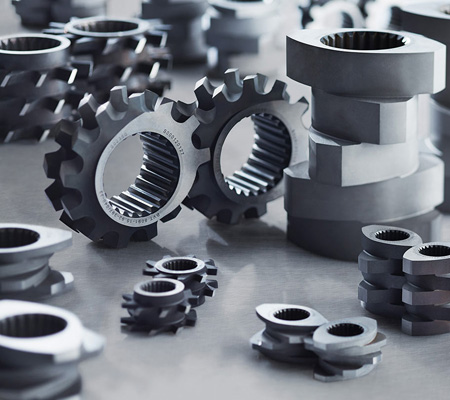

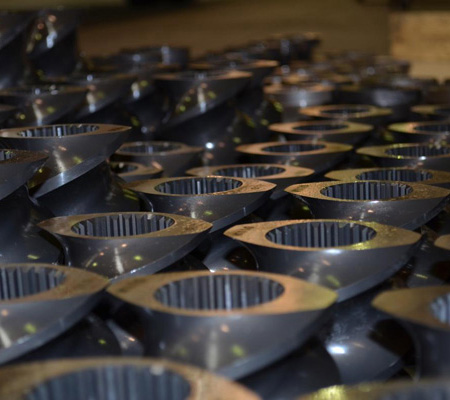

All types of screw elements, consisting of kneading blocks, mixing elements and convey elements, from 20mm-300mm diameter in size. Manufactured in various types of wear and/or corrosion resistant materials.
Screw Daimeter: φ20mm ~ φ300mm
Base Materials: Alloy Steel: AISI SAE 4140, AISI SAE 4340, Nitralloy 135, 38CrMoAlA, W6Mo5Cr4V2, HIP steel, etc.
Tool Steel: AISI M2, D-2, H-13, CPM-9V, CPM-10V, DC53, etc.
High Nickel Alloy: Inconel 625, Inconel 718, Hastelloy C-276, Hastelloy C-22HS, etc.
Machine Makes: APV, Buss, Clextral, Coperion, Entek, Farrel, JSW, SM Platek, Berstorff, Kobe, Leistriz, Maris, Steer, Theysohn, Toshiba, Werner & Pfleiderer, etc.
